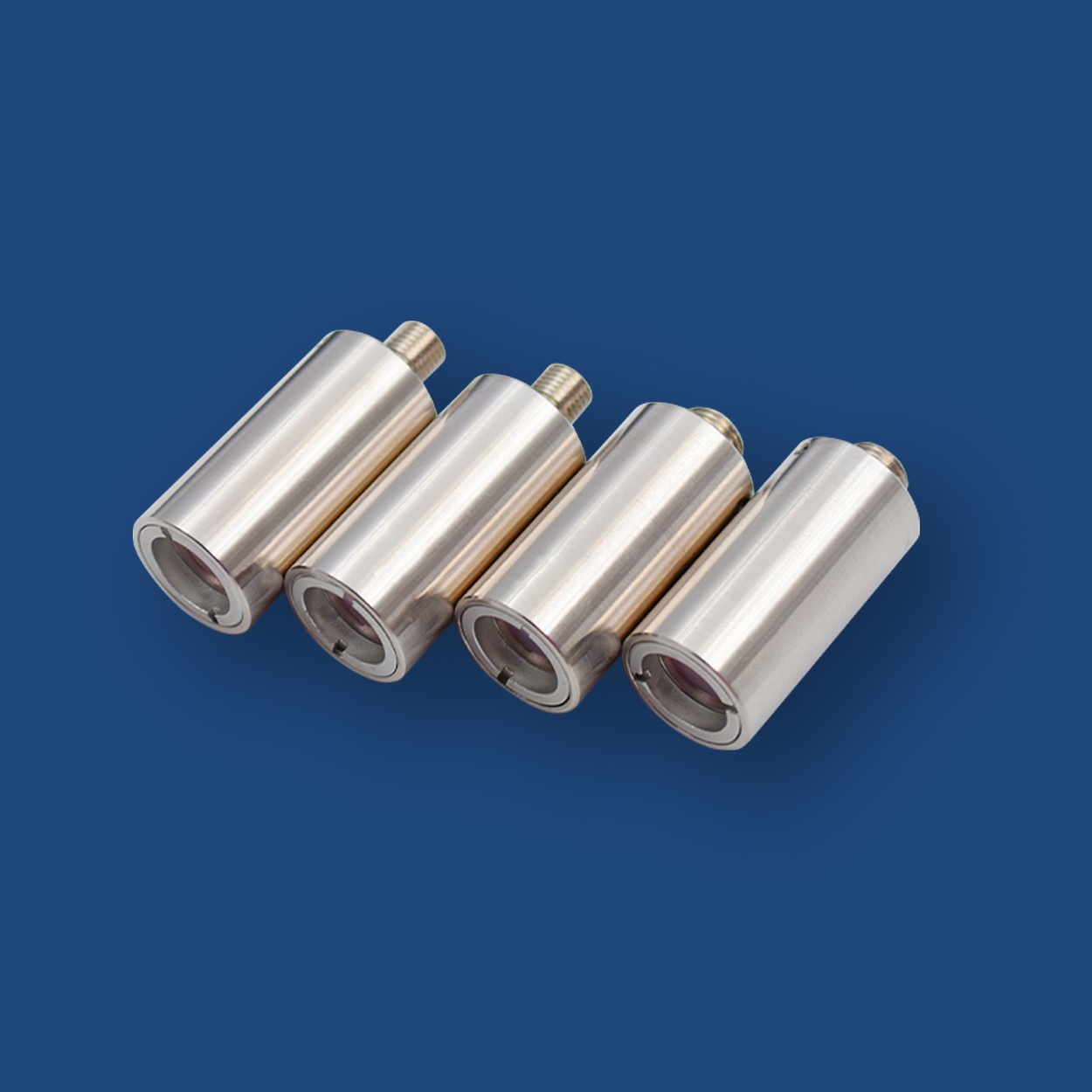

Multi-mode Fiber Collimator
The CMM series of receptacle-style fiber collimators are designed for producing a collimated beam exiting a multi-mode and high N.A. fiber cable. The air-spaced triplet lenses are broadband AR coated for 350nm-700nm to minimize the losses caused by surface reflections. Each collimator is factory aligned at 635 nm. These collimators are available in non-magnetic stainless steel housings with receptacles for FC/PC or SMA fiber optic connectors.
Features
ü 10mm Effective Focal lengths
ü Compact and non-magnetic stainless steel housing
ü Individually aligned and tested for the specified wavelengths
ü Various AR coatings for UV-IR
ü Choice of fiber receptacles: FC/PC, FC/APC or SMA
CMMT Fiber Collimator
Alignment Wavelength | AR Coating | Connector | N.A. | Focal Length | Clear Aperture | Full-Angle Divergence | Damage Threshold | Housing Length |
635nm | 350-700nm | FC/PC | 0.5 | 10mm | 5.5mm | 0.5-1° | 7.5J/cm2 | 36.2mm |
635nm | 350-700nm | SMA | 0.5 | 10mm | 5.5mm | 0.5-1° | 7.5J/cm2 | 39.3mm |
Dimensions (mm)
